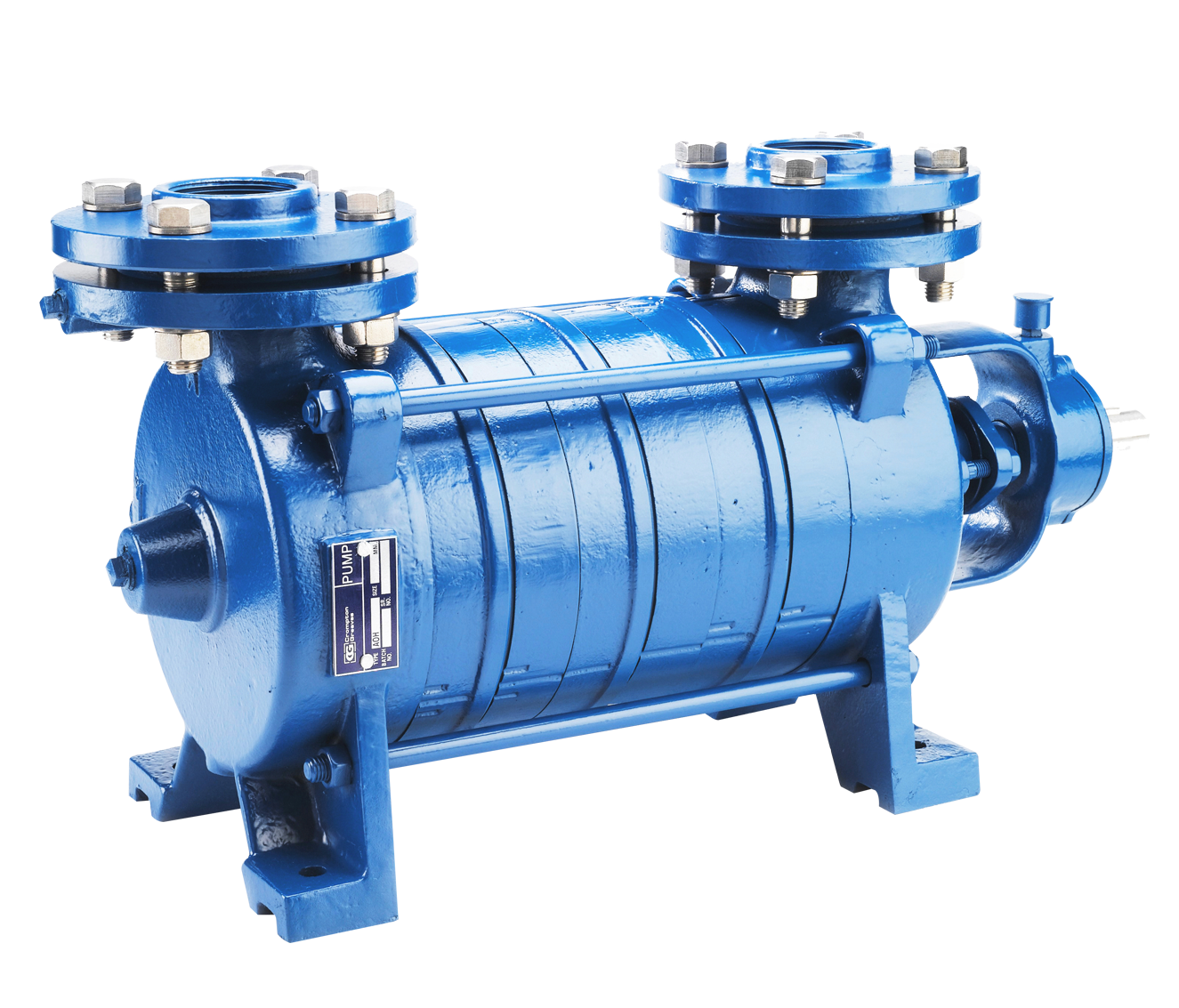

Monoflo Marinz is a range of side channel pumps developed for various needs of liquid handling. They are horizontal, segmental multistage type construction, with open vane wheel 'star' type impeller. It is designed for relatively low flow, high head, thin liquid and liquefied gas transfer.
Several features of Marinz characterised this unique pump. Mainly,
General water transfer; pressure supply booster systems; water feature applications
General transfer of liquid (distillate, fuel oil, light lubricants, hydrocarbons, etc); hot & cold water circulations; pumping condensate & boiler feed; machine cooling; process water and other manufacturing processes.
General water supply and pressure boosting.
Horticultural irrigation & sprinkler systems; watering & drainage.
Clean water; gas-entrained liquid; or slightly aggressive liquid (compatible to pump construction material), that do not contain any solid matters or abrasives admixture.
Up to 12 bars (12 kg/cm2)
0.5 to 20m3/hr (500 to 20,000 LPH).
6 to 115 metres (0.6 to 11.5 bar)
From 0oC to 100oC
Nominal operating speed up to 1,500 r.p.m. at 50Hz. (up to 1,800 r.p.m. at 60Hz)
0.3 to 230 mPas
Up to 50%
Up to 50%
